For Chemical, Textile, Food, Graphic, Leather Tanning, Ceramic, Electronic, Galvanic, Paint, Oil, Food And Health
30th anniversary since 1982 PUMPS FOR INDUSTRY
Double Diaphragm pumps in plastic and metal certified atex - vertical centrifugal - Horizontal centrifugal - Drum transfer - Health - pulsation dampeners atex - magnetic drive - pumps for food - FDA-3A - Accessories
- • BOXER : Double Diaphragm pumps - atex
- • CUBIC : Mini Pneumatic diaphragm pumps - atex
- • FOODBOXER: Diaphragm pumps for food FDA
- • SANIBOXER : Diaphragm pumps aimentari and sanitary 3A certified
- • MB : Horizontal centrifugal pumps
- • MB : Horizontal centrifugal pumps
- • DM : Centrifugal pumps with magnetic drive
- • IM : Vertical centrifugal pumps
- • TR : Drum transfer pumps
- • EQUAFLUX : Pulsation dampeners atex certified
- • Filters : Salvapompa filter basket
- • Accessories
Our products are technologically advanced components using resistance even in aggressive and non-favorable , easy to install, with operations long and reliable. This is the philosophy of Debem for over 30 years in the field of fluid transfer.Leader in the industry, specializing in the production of industrial pumping systems for liquid and highly corrosive acids and aggressive. Our products are tested to meet the most demanding working conditions in the
- • Chemical Industry
- • Textile
- • Food
- • Environmental
- • Graphic
- • Leather Tanning
- • Ceramics
- • Electronics
- • Electroplating
- • Oil
- • Petrochemical
- • Pint
- • Biodiesel AND Other.

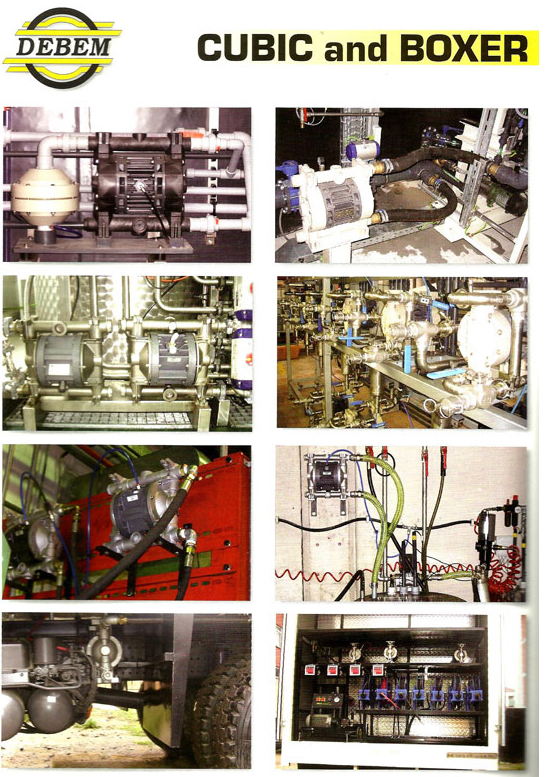

CUBIC pneumatic diaphragm pumps
Cubic diaphragm pumps: high performance, high power and strength, suitable for pumping fluids with high apparent viscosity, even in the presence of suspended solids. Particularly suitable where space is limited.
BOXER double diaphragm pumps
Diaphragm Pumps Boxer: high performance, high power and strength. Suitable for pumping fluids with high apparent viscosity, even in the presence of suspended solids.
FOODBOXER pumps for food FDA
Diaphragm Pumps made of stainless steel high gloss, are designed for use in the food, pharmaceutical, cosmetic and beverage. Manufactured in accordance with FDA regulations
SANIBOXER pumps for food and health 3A
SANIBOXER pumps for food and health 3A Diaphragm Pumps made of stainless steel high gloss, are designed for use in the food, pharmaceutical, cosmetic and beverage and in general for all applications that require a sterile environment. 3A Certificate
MB horizontal centrifugal pumps
Horizontal centrifugal pumps resin high yield driven by electric motor in direct drive for the transfer and / or rapid emptying of the fluid.Capacities from 6 to 75 m3/hour. The open impeller design allows pumping a continuous flow
DM magnetic drive pumps
Magnetic drive centrifugal pumps are succesfully for a wide range of applications: lab technician, medical equipment for photographic development, process x-ray systems, metal finishing, graphics, heat exchangers ...
IM vertical centrifugal pumps
Vertical centrifugal pumps in high-performance resin for fixed installations with the pump immersed directly in the tank, driven by electric motor direct drive for rapid emptying of the fluid.Capacity 6 m3/hour to 75 m3/hour.
TR drum transfer pumps
TR drum transfer pumps, portable, suitable for pumping corrosive fluids, working underwater, are devoid of internal mechanical seals. Their mounting collects in the stem any fluid leakage.
Filters salvapompa basket
The large total area of passage of the basket makes them suitable to be installed on the pump diaphragm and centrifugal protecting them from solids in suspension, filaments, algae and foreign bodies, without causing excessive pressure drop.
EQUAFLUX pulsation dampeners
Automatic diaphragm pulsation dampeners: high efficiency and robustness. Fitted to the discharge of diaphragm pumps minimize pulsating flows automatically adapting to the conditions of the system, adapting automatically.
Accessories that implement the performance of our products and by the operator.

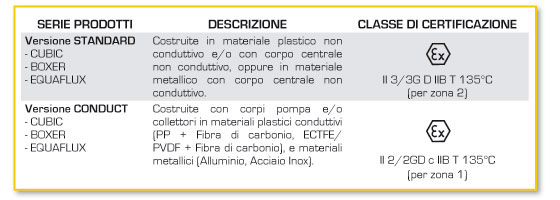

Debem has filed with the TÜV NORD documentation attesting to compliance with ATEX Directive 94/9/EC according to the pneumatic diaphragm pumps series BOXER and CUBIC and the automatic pulsation dampeners EQUAFLUX, as described in the table of later.
Products are in the STANDARD version, class 3/3 GD c IIB T 135° C or - on request - properly made in version CONDUCT, class 2/2 GD c IIB T 135° C.
The user of the equipment has responsible for classifying their area of use. However, it is the responsibility of the manufacturer to identify and put the class certification of the equipment produced.
Safety symbol in accordance with DIN 40012 Appendix A
II 2/2 GD: Surface equipment for use in areas where flammable gases, vapors or mists and clouds of combustible dust in air is present occasionally during normal operation (EN 1127-1 par. 6.3), both in the outer zone than in inner zone.
II 3/3 GD: Surface equipment for use in areas where it is unlikely, or rare and of short duration, the presence of flammable gases, vapors or mists and clouds of dust in the air during fuel combustion operation, both in the external in the interior.
c: Equipment protection mode by constructional safety (EN 13463-5).
IIB: Exclusion of the following products: hydrogen, acetylene, carbon disulfide.
T 135°: Allowed temperature class. The user must process fluid temperature in accordance with that classification taking into consideration the instructions of the manual and the provisions of the regulations. The user must also take into consideration the ignition temperature of the gas, vapor or mist in the area of application, and clouds of combustible dust in the air in the area of use.
